CM3 Pressure Monitor - Specification - Internal Construction

 Use this button to return to the Specification Overview

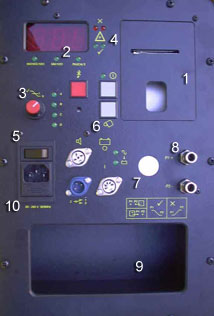

The working parts of the CM3 are fitted to a heavy duty plastic plate which is fitted to the base of the case. The plate is manufactured from black textured plastic, screen printed with symbols to identify the function of the controls and displays.

1) Printer Compartment. The paper roll and print ribbon are behind the snap-fit door.

2) 3-digit numerical display

3) LED indicators showing Units of measurement

4) Twin LED indicators showing alarm status (normal or alarm)

5) Preset Alarm selector switch and indicator LEDs

6) Printer on-off, paper feed and audible alarm silence pushbuttons

7) Input-output connectors

8) Push in 6mm pipe connections

9) Cable stowage compartment

10) Mains supply connection.
